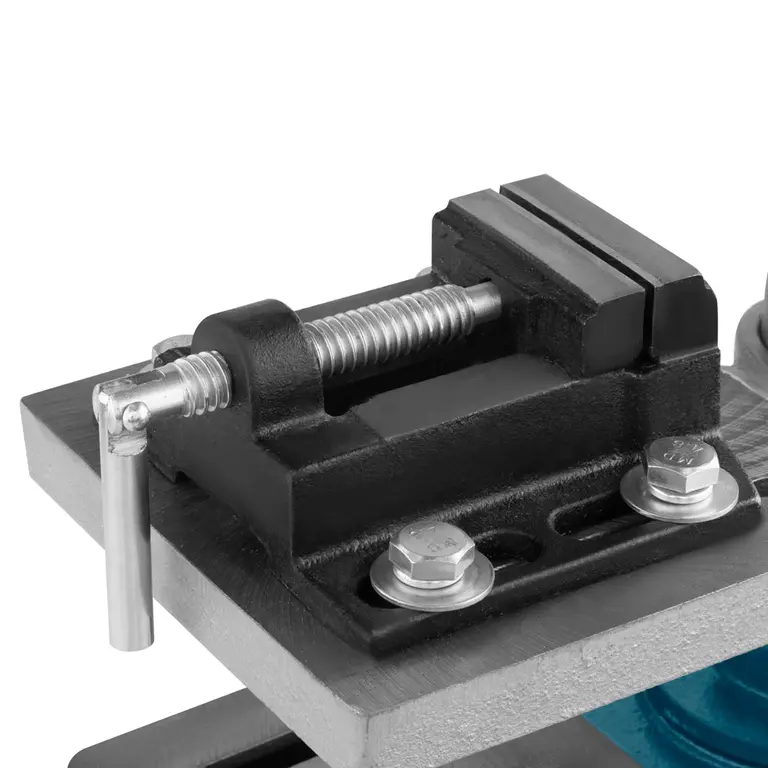

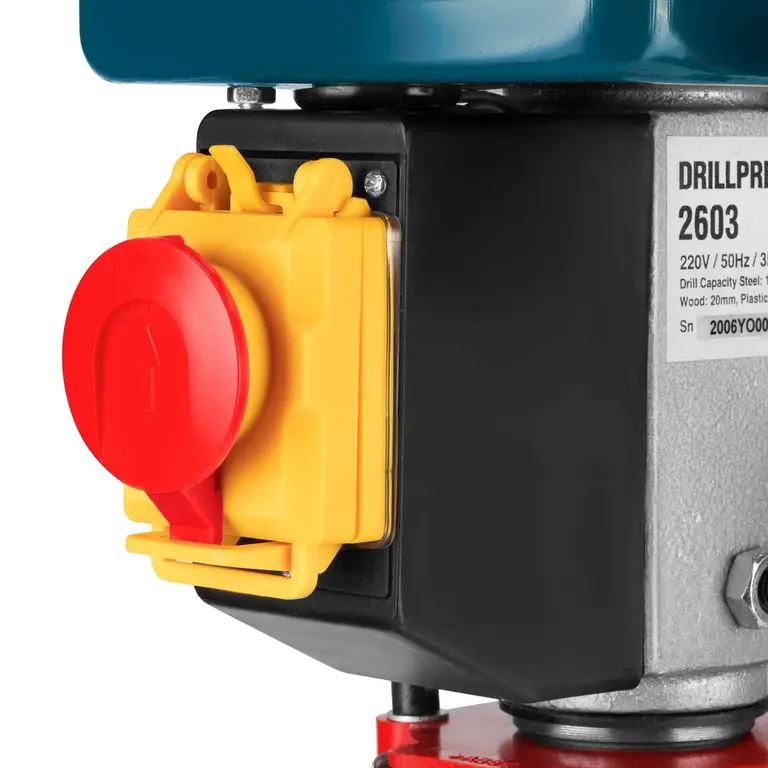

5-speed settings for drilling into wood or metal. Large, robust handles provide greater leverage and control. 1.5–13mm keyed chuck accommodates a wide range of drill bits. Height-adjustable table with 45° left/right tilt for angled drilling. Cast aluminum pulley for reliable performance. Cast iron base and worktable for enhanced stability and durability. Front-mounted emergency switch for added safety. Chuck guard adds user safety. 2.5" bench vise for secure workpiece holding. Read more
Description

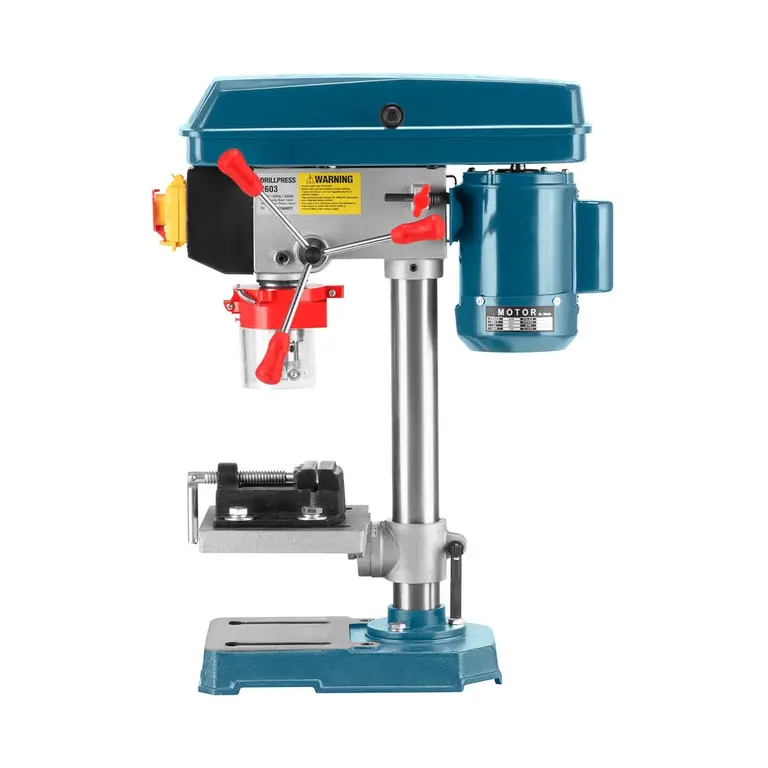

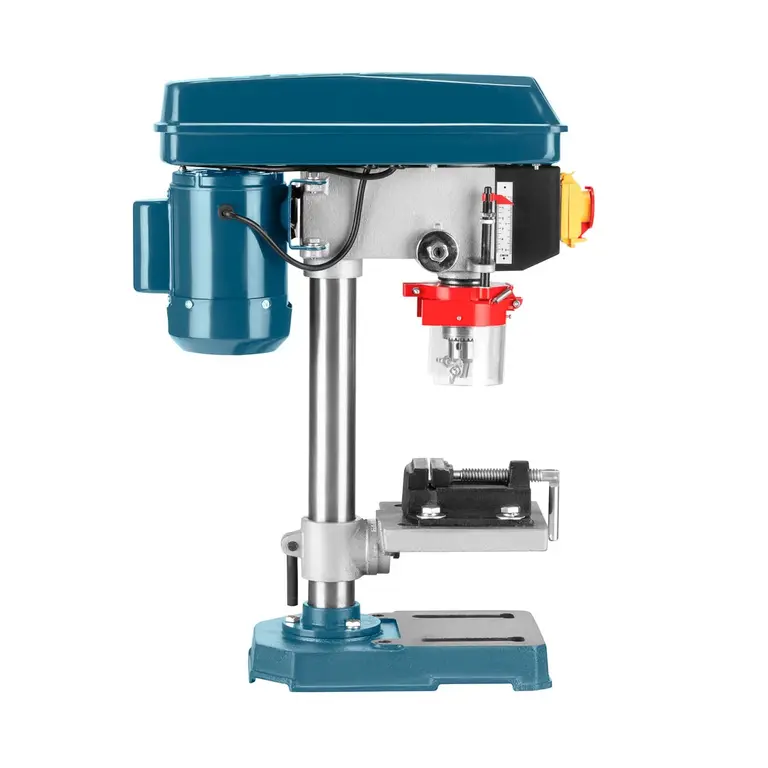

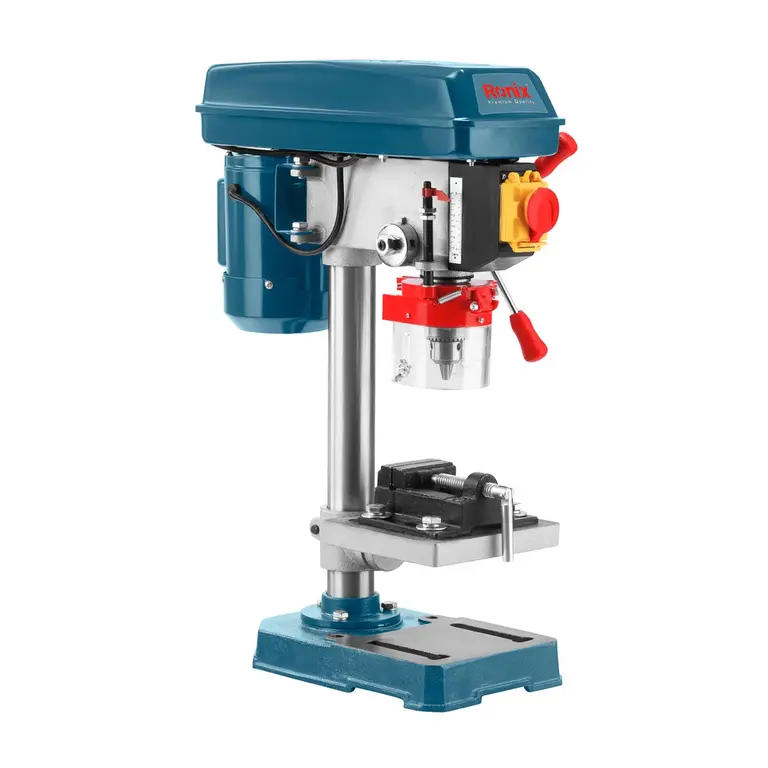

Is a drill press worth it? Sure! A drill press is larger in weight and height and more accurate than hand-held drills. Due to its adjustable table, it can drill at precise angles to the workpiece. The Ronix 2603 Drill Press has a 350W motor with 5-speed settings and overload protection to prevent motor damage. This drill press offers 5 pulley speeds for drilling into wood or metal. Its wide, heavy-duty feed handles provide additional leverage and control over the tool.

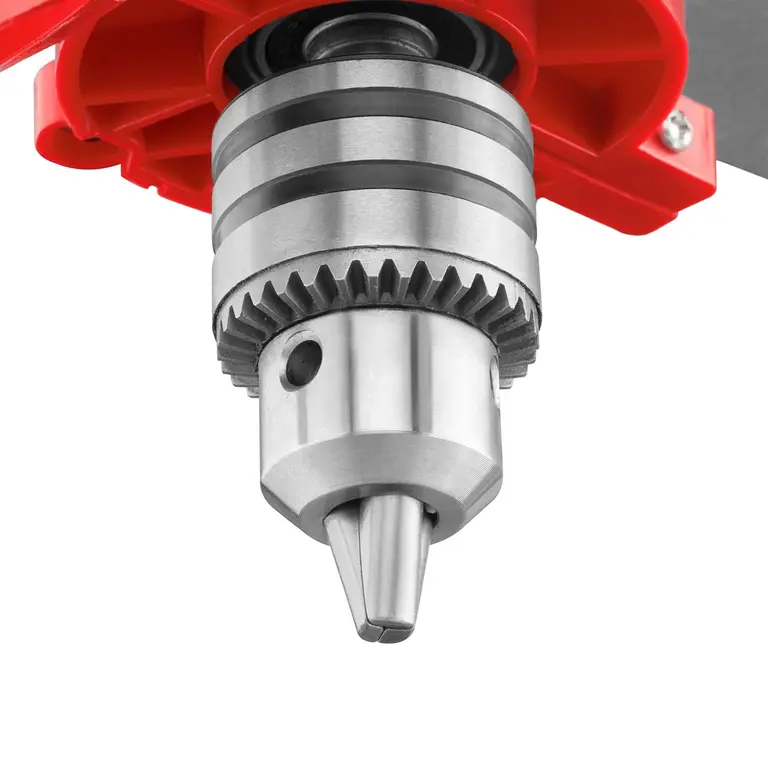

The chuck includes a 1.5mm to 13mm changeable keyed chuck for increased bit capacity. This chuck size is ideal for all applications. There is also an adjustable table for simple and accurate height adjustment and 0-45° (L&R) tilt capability for angled drilling. To reinforce the body of this drill, the working table and base are made of iron cast. The operator’s safety for the chuck is provided by a guard, which allows the user to operate more efficiently and effectively.
To check the technical specifications of this drill press, scroll down to the “Detailed Description” section.
| Specifications | Descriptions |
|---|---|
| Model | 2603 |
| Power | 350 W |
| Voltage | 220-240 V |
| Frequency | 50-60 Hz |
| Chuck Capacity | 13 mm |
| Drill Capacity in Wood | 24 mm |
| Drill Capacity in Steel | 13 mm |
| Drill Capacity in Plastic | 13 mm |
| Spindle Travel | 50 mm |
| Number of Speeds | 5 |
| Speed | 620-2620 RPM |
| Spindle Taper | B16 |
| Swing | 210 mm |
| Distance fom Spindle End to the Surface of Table | 220 mm |
| Distance from Spindle End to the Surface of Base | 300 mm |
| Table Size | 160x160 mm |
| Base Size | 290X185 mm |
| Column Diameter | 46 Φmm |
| Height | 580 mm |
| Weight | 17.5 kg |
| Packaging | Color Box |
| Accessories | outside hex. bolt m8×20-3pcs,spring washer φ8mm-3pcs,hexagon bar wrench s3-1pcs,hexagon bar wrench s4-1pcs,handle & tip-3pcs,J2513-13mm chuck &key -1pcs |
