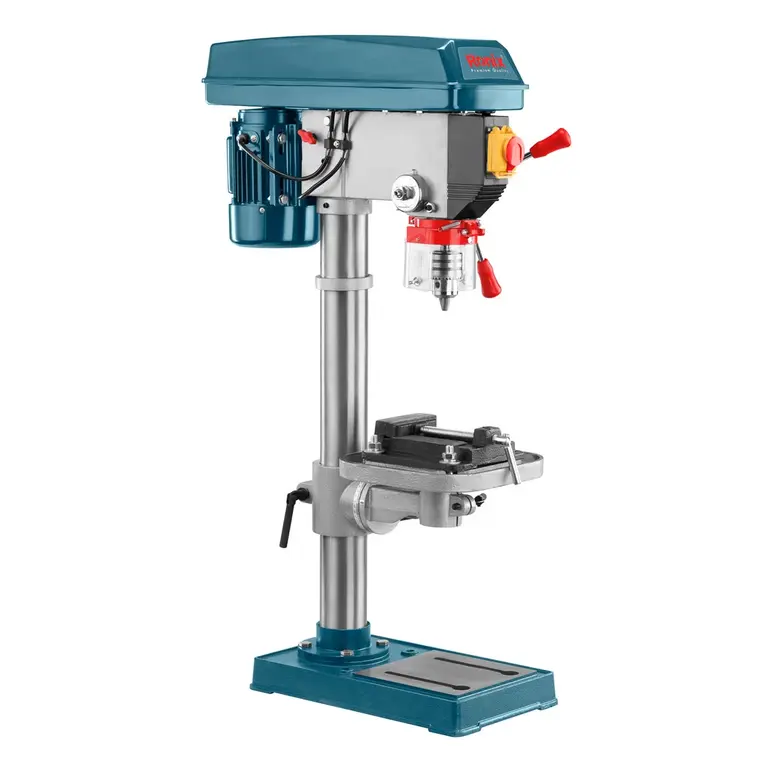

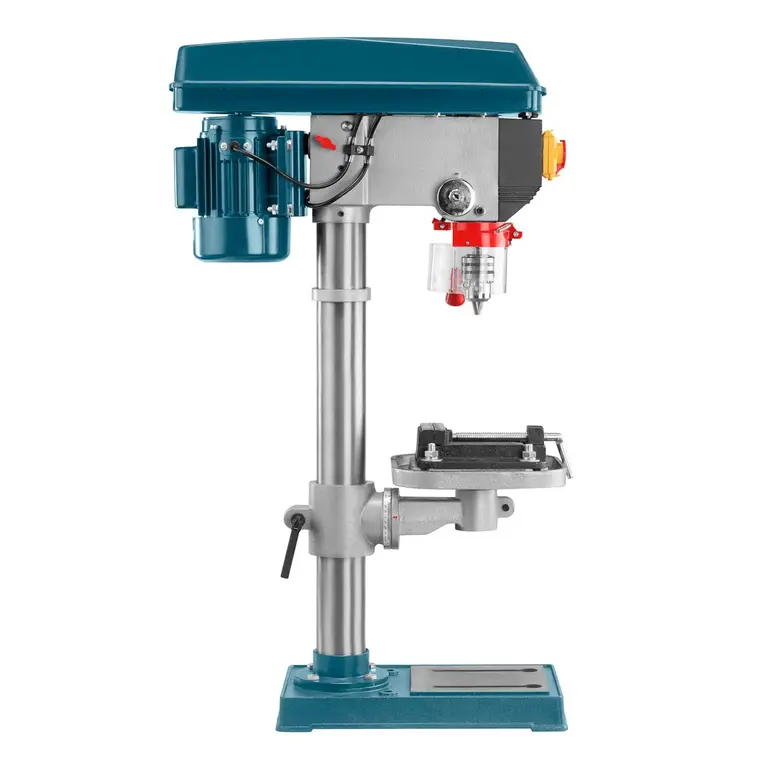

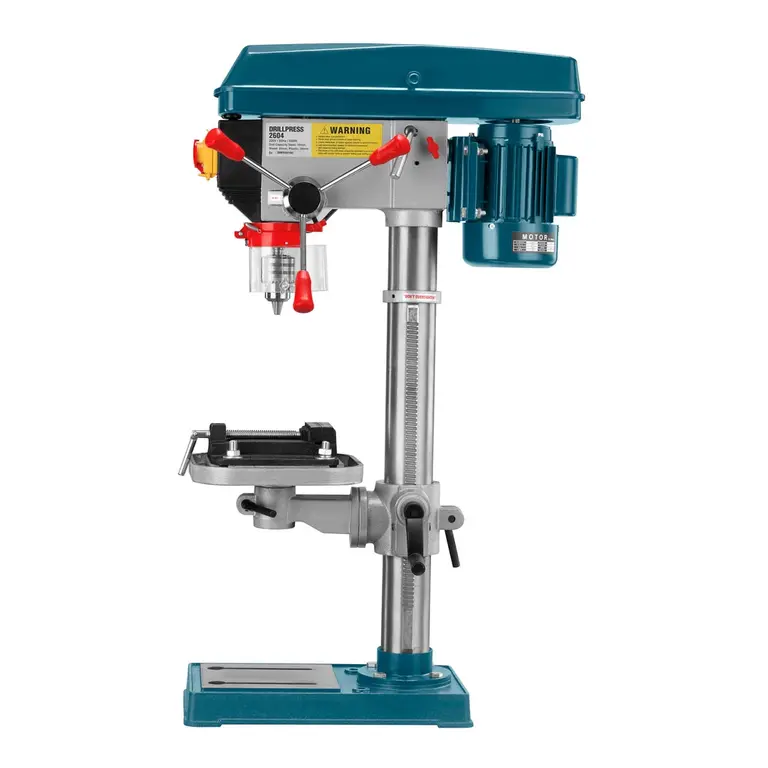

Electric Drill Press 550W-16mm 2604

In Stock
BD105.00

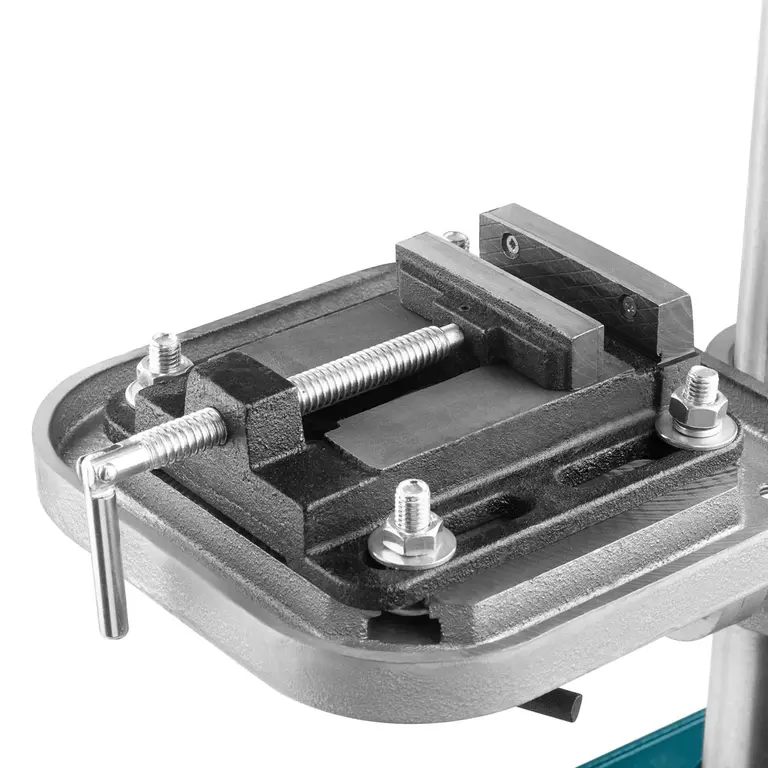

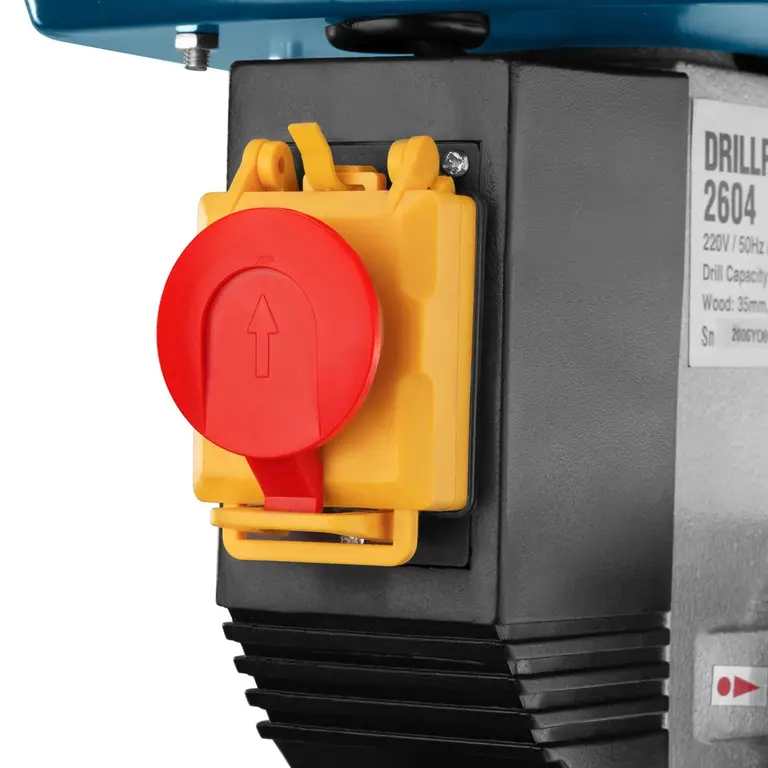

16-speed settings for drilling into wood or metal. Large, robust handles provide greater leverage and control. 1-16mm adjustable keyed chuck accommodates a wide range of drill bits. Rack and pinion table for easy and accurate height adjustment includes with 45˚(L&R) tilt ability for angled drilling Cast aluminum pulley for reliable performance. Cast iron base and worktable for enhanced stability and durability. Front-mounted emergency switch for added safety. Chuck guard adds user safety. 4'' bench vise for secure workpiece holding. Read more

Description

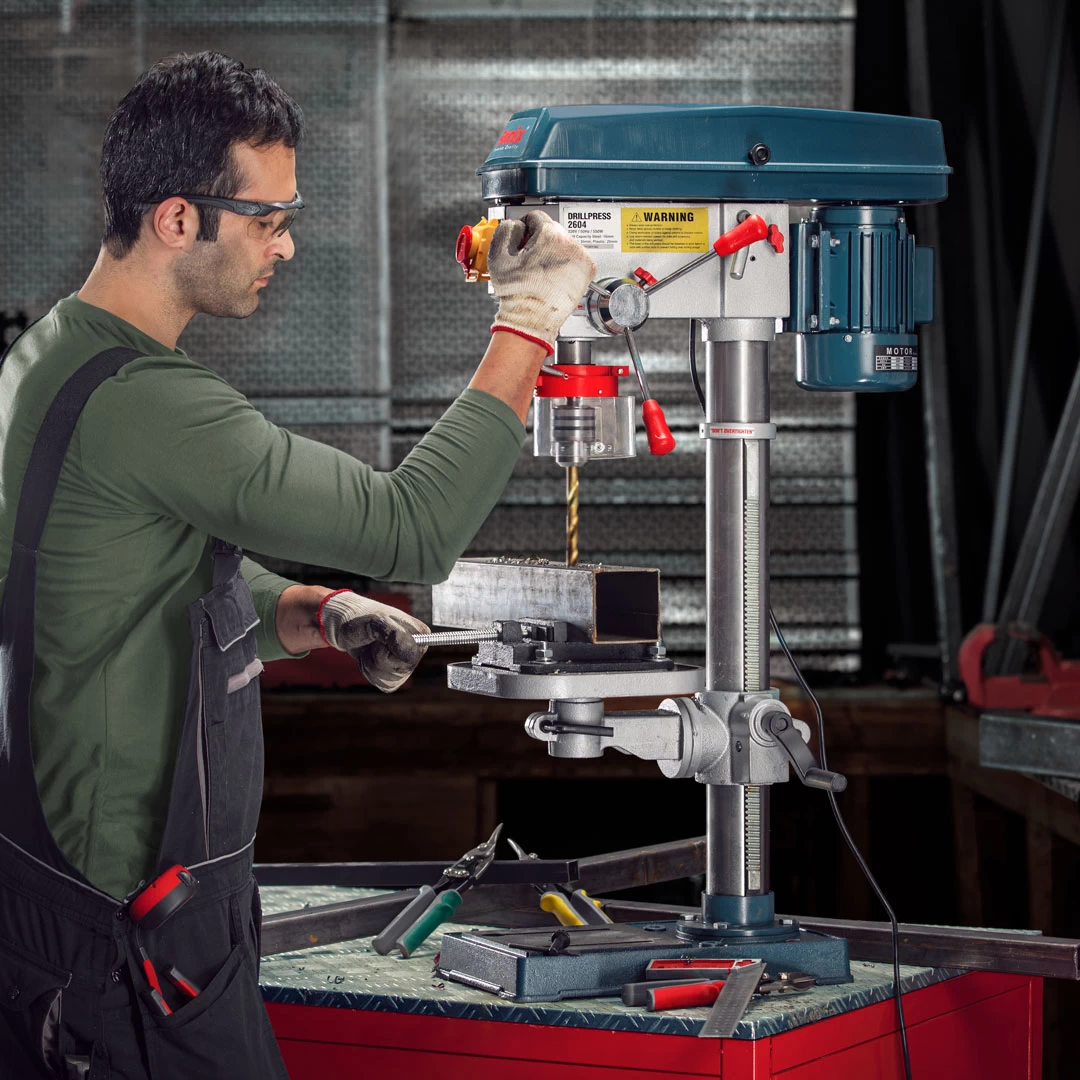

If you’re asking, why use a drill press instead of a drill? You need to know that a drill press is more considerable in weight and height and more accurate than hand-held drills. Due to its adjustable table, it can drill at precise angles to the workpiece. The Ronix 2604 Drill Press has a 550W motor with 16-speed settings and overload protection to prevent motor damage. Offering 16 pulley speeds for drilling into wood or metal makes the Ronix 2604 drill press a versatile and practical tool for operators.

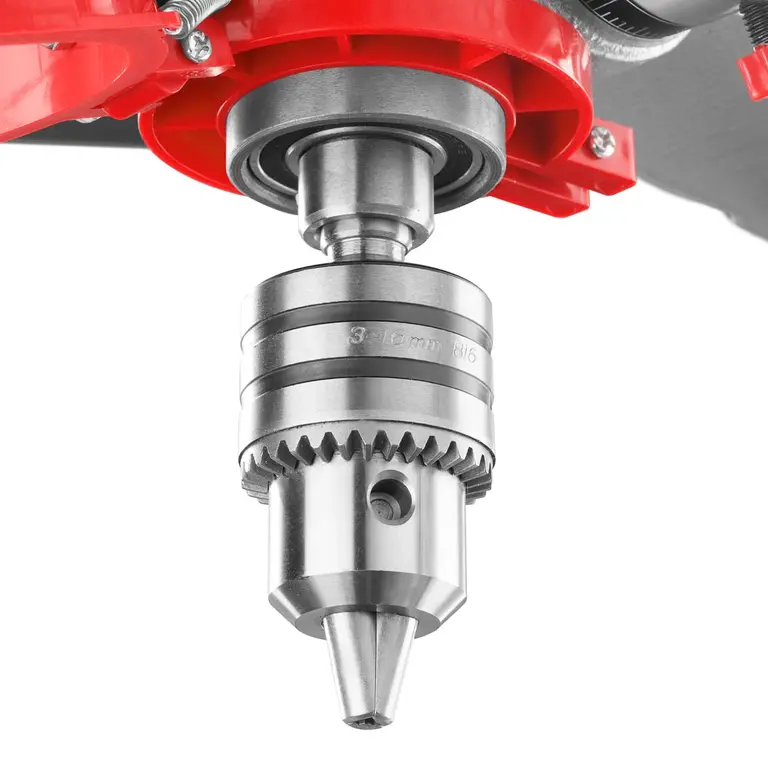

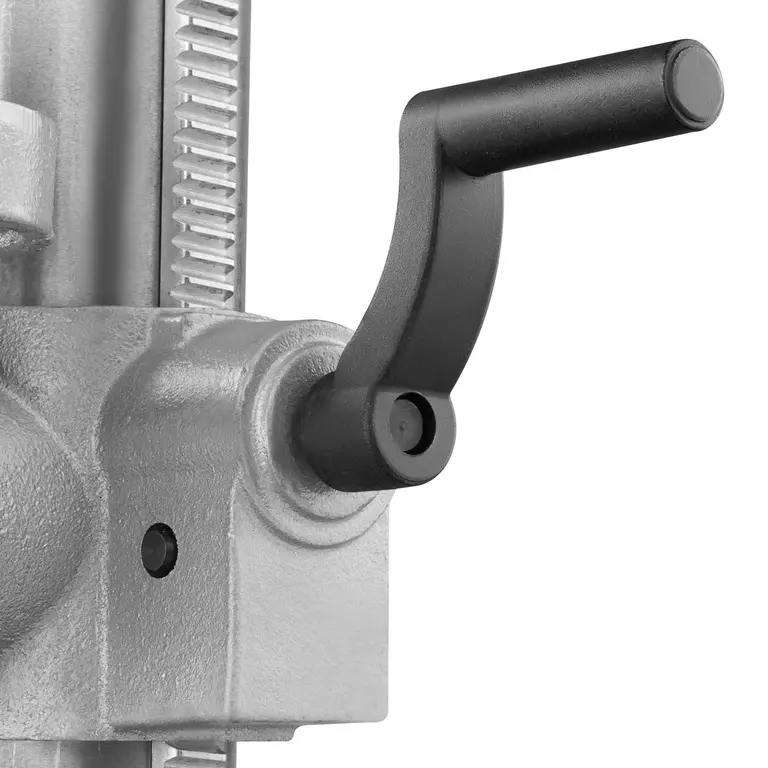

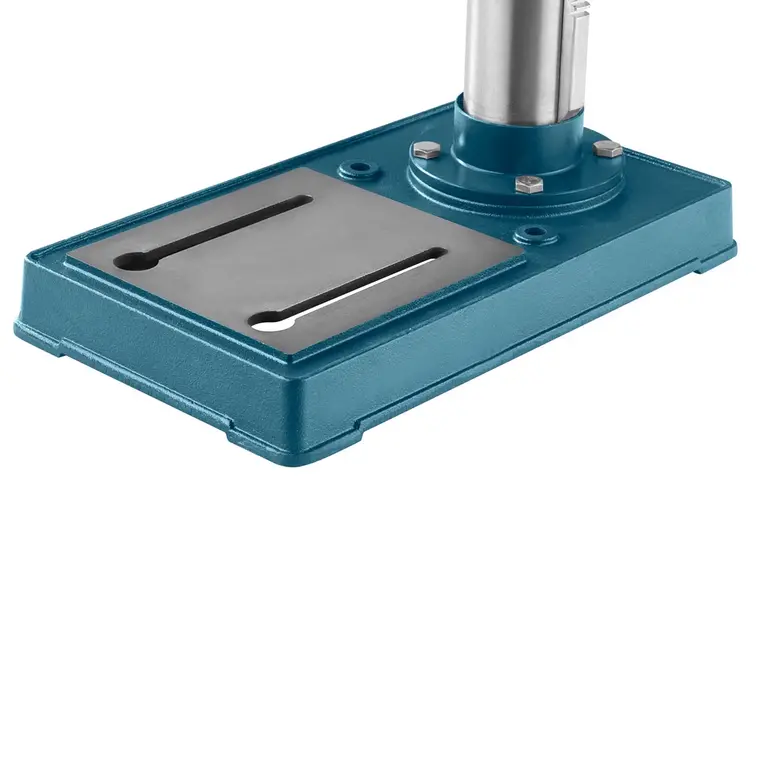

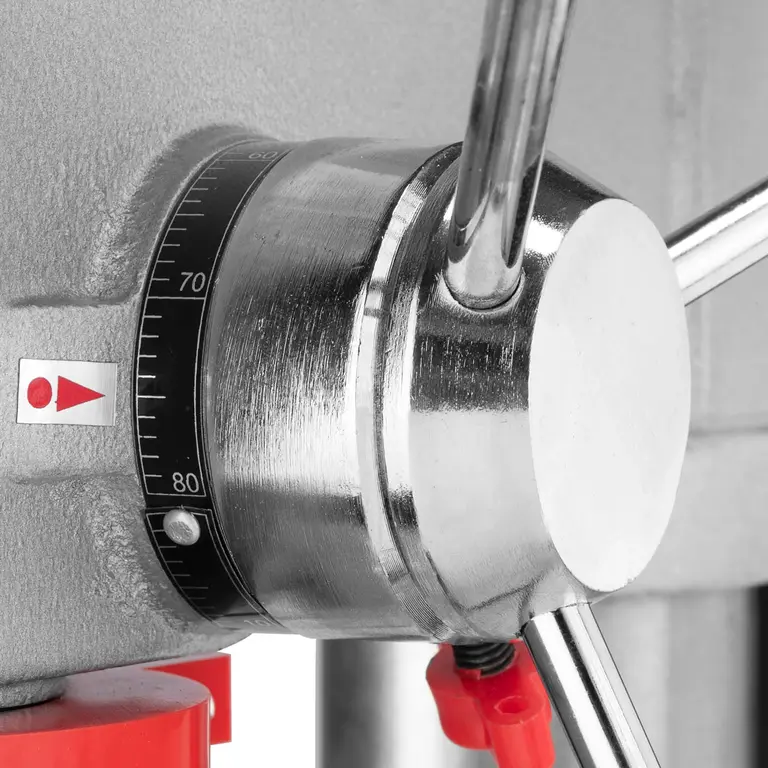

The tool’s wide, heavy-duty feed handles provide increased leverage and control over the tool. The chuck includes a 3mm to 16mm adjustable keyed chuck for increased bit capacity. This chuck size is ideal for all applications. There is also a rack and pinion adjustable table for easy and accurate height adjustment and 0-45° (L&R) tilt capability for angled drilling. To reinforce the body of this drill, the working table and base are made of iron cast. The operator’s safety for the chuck is provided by a guard, which allows the user to operate more efficiently and effectively.

To check the technical specifications on this drill press, scroll down to the “Detailed Description” section.


Specifications Descriptions
Model 2604
Power 550 W
Voltage 220-240 V
Frequency 50-60 Hz
Chuck Capacity 16 mm
Drill Capacity in Wood 50 mm
Drill Capacity in Steel 16 mm
Drill Capacity in Plastic 16 mm
Spindle Travel 80 mm
Number of Speeds 16
Speed 180-2770 RPM
Spindle Taper MT2
Distance from Spindle Axis to the Column 162 mm
Distance from Spindle End to the Surface of Table 450 mm
Distance from Spindle End to the Surface of Base 630 mm
Swing 325 mm
Table Size 250X250 mm
Base Size 420X250 mm
Column Diameter 72 Φmm
Height 980 mm
Weight 42 kg
Packaging Color Box
Accessories outside hex. bolt m10×25-4pcs,spring washer φ10mm-4pcs,hexagon bar wrench s3-1pcs,hexagon bar wrench s4-1pcs,handle & tip-3pcs,j2516-16mm chuck &key -1pcs,thick brake iron -1pcs
